Metal Awnings

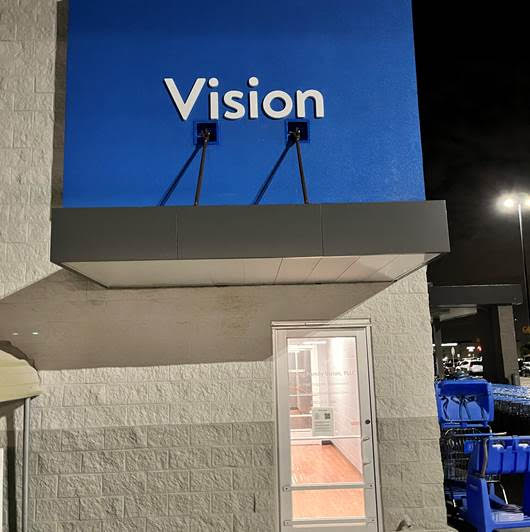

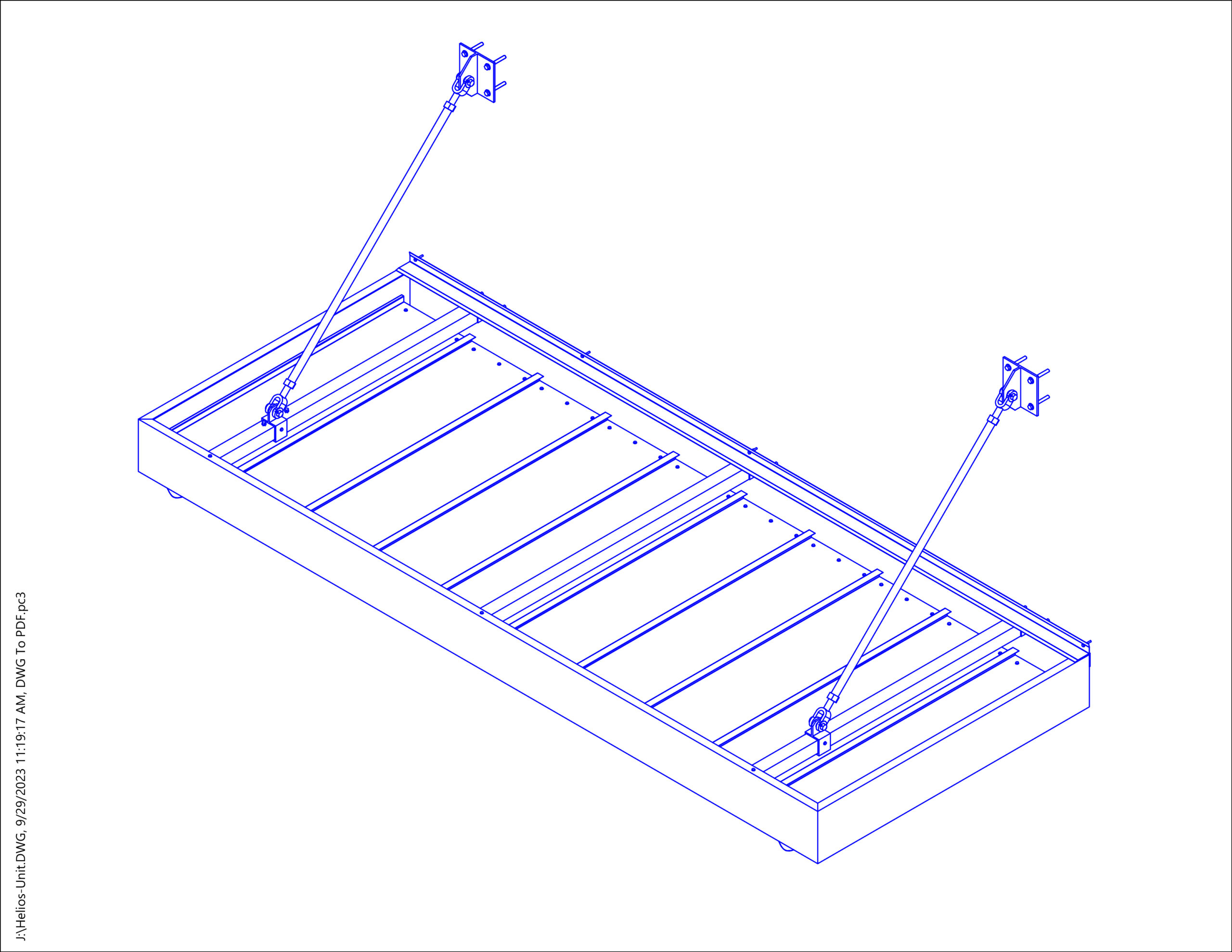

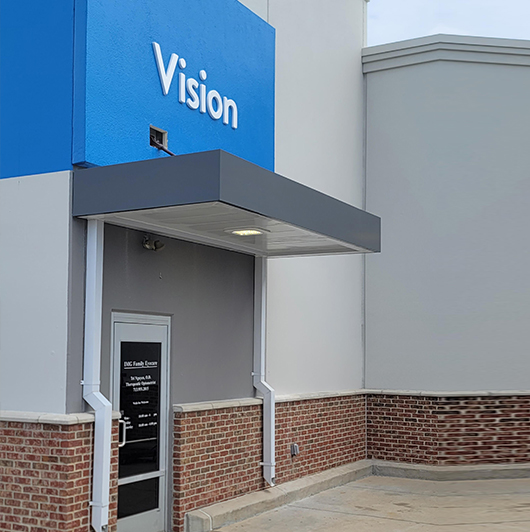

Here is a functional aluminum awning which uses overhead braces. This design is suitable for offices, retail and industrial buildings. The overhead brace design allows it to be used where vertical support posts are not feasible/desirable.

Structural roof panels: 16” wide aluminum flat panels creating a clean continuous surface appearance (Other size panels available upon request).

Painted overhead steel braces.
Extruded aluminum 4” gutter.
Optional downspout kit.
Shop drawings and engineer sealed drawings and calculations are available for purchase

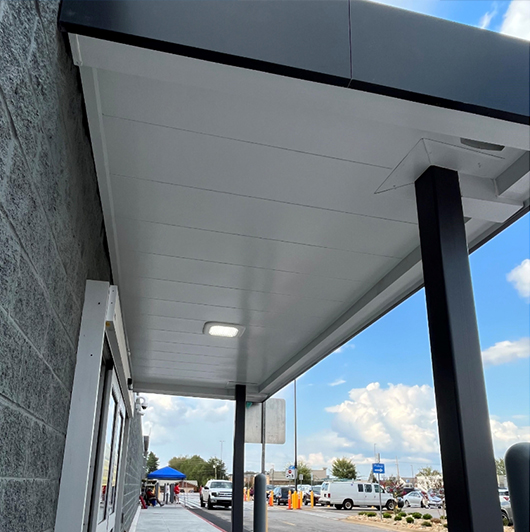

Flat roof design: The flat roof design makes the supported Cover a perfect choice for large coverage and areas with high load requirements. Rust free aluminum construction protects from rain, snow, sleet and sun. Helps reduce energy by reducing heat through doors and windows.

Resists winds over 120 mph, depending on the cover projection and wall strength.
Snow loads up to 60 lb/sf, depending on the cover projection and wall strength.
Available in multiple widths and with gutters and various fascia heights.

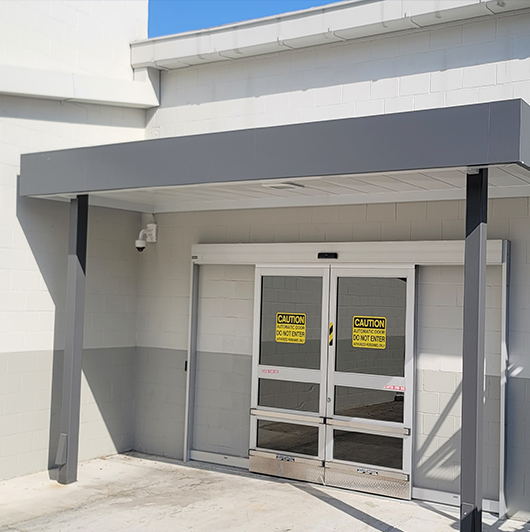

The posts can be installed on a concrete slab, concrete piers or buried directly in the ground.
16” wide roof panels joins together to create a clean continuous surface and eliminates bird nesting
Projections are available in 1 foot increments and widths in 1 foot increments.
Built-in 4” gutter with an available downspout.
Heavy duty fasteners are included.
Shop drawings and engineer sealed drawings and calculations are available for purchase.
